GitLab Security Dashboard (ULTIMATE)

The Security Dashboard is a good place to get an overview of all the security vulnerabilities in your groups, projects and pipelines.

You can also drill down into a vulnerability and get extra information, see which project it comes from, the file it's in, and various metadata to help you analyze the risk. You can also action these vulnerabilities by creating an issue for them, or by dismissing them.

To benefit from the Security Dashboard you must first configure one of the security reports.

Supported reports

The Security Dashboard supports the following reports:

Requirements

To use the instance, group, project, or pipeline security dashboard:

At least one project inside a group must be configured with at least one of the supported reports.
The configured jobs must use the new reports syntax.
GitLab Runner 11.5 or newer must be used. If you're using the shared Runners on GitLab.com, this is already the case.

Pipeline Security

Introduced in GitLab Ultimate 12.3.

At the pipeline level, the Security section displays the vulnerabilities present in the branch of the project the pipeline was run against.

Visit the page for any pipeline which has run any of the supported reports. Click the Security tab to view the Security findings.

NOTE: Note: A pipeline consists of multiple jobs, including SAST and DAST scanning. If any job fails to finish for any reason, the security dashboard will not show SAST scanner output. For example, if the SAST job finishes but the DAST job fails, the security dashboard will not show SAST results. The analyzer will output an exit code on failure.

Project Security Dashboard

Introduced in GitLab Ultimate 11.1.

At the project level, the Security Dashboard displays the latest security reports for your project. Use it to find and fix vulnerabilities.

Export vulnerabilities

Introduced in GitLab Ultimate 12.10.

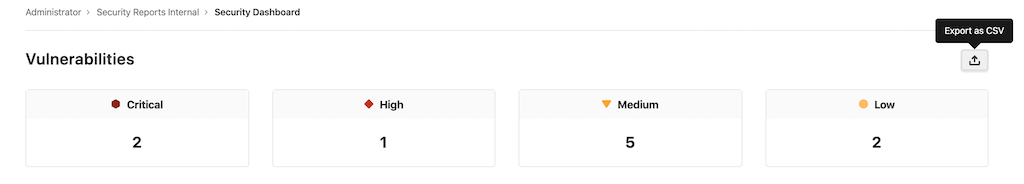

You can export all your project's vulnerabilities as CSV by clicking on the export button located at top right of the Project Security Dashboard. This will initiate the process, and once complete, the CSV report will be downloaded. The report will contain all vulnerabilities in the project as filters won't apply.

NOTE: Note: It may take several minutes for the download to start if your project consists of thousands of vulnerabilities. Do not close the page until the download finishes.

Group Security Dashboard

Introduced in GitLab Ultimate 11.5.

The group Security Dashboard gives an overview of the vulnerabilities of all the projects in a group and its subgroups.

First, navigate to the Security Dashboard found under your group's Security tab.

Once you're on the dashboard, at the top you should see a series of filters for:

Status
Severity
Report type

NOTE: Note: The dashboard only shows projects with security reports enabled in a group.

Selecting one or more filters will filter the results in this page.

The main section is a list of all the vulnerabilities in the group, sorted by severity. In that list, you can see the severity of the vulnerability, its name, its confidence (likelihood of the vulnerability to be a positive one), and the project it's from.

If you hover over a row, the following actions appear:

More info
Create issue
Dismiss vulnerability

Next to the list is a timeline chart that shows how many open vulnerabilities your projects had at various points in time. You can filter among 30, 60, and 90 days, with the default being 90. Hover over the chart to get more details about the open vulnerabilities at a specific time.

Below the timeline chart is a list of projects, grouped and sorted by the severity of the vulnerability found:

F: 1 or more "critical"
D: 1 or more "high" or "unknown"
C: 1 or more "medium"
B: 1 or more "low"
A: 0 vulnerabilities

Projects with no vulnerability tests configured will not appear in the list. Additionally, dismissed vulnerabilities are not included either.

Read more on how to interact with the vulnerabilities.

Instance Security Dashboard

Introduced in GitLab Ultimate 12.8.

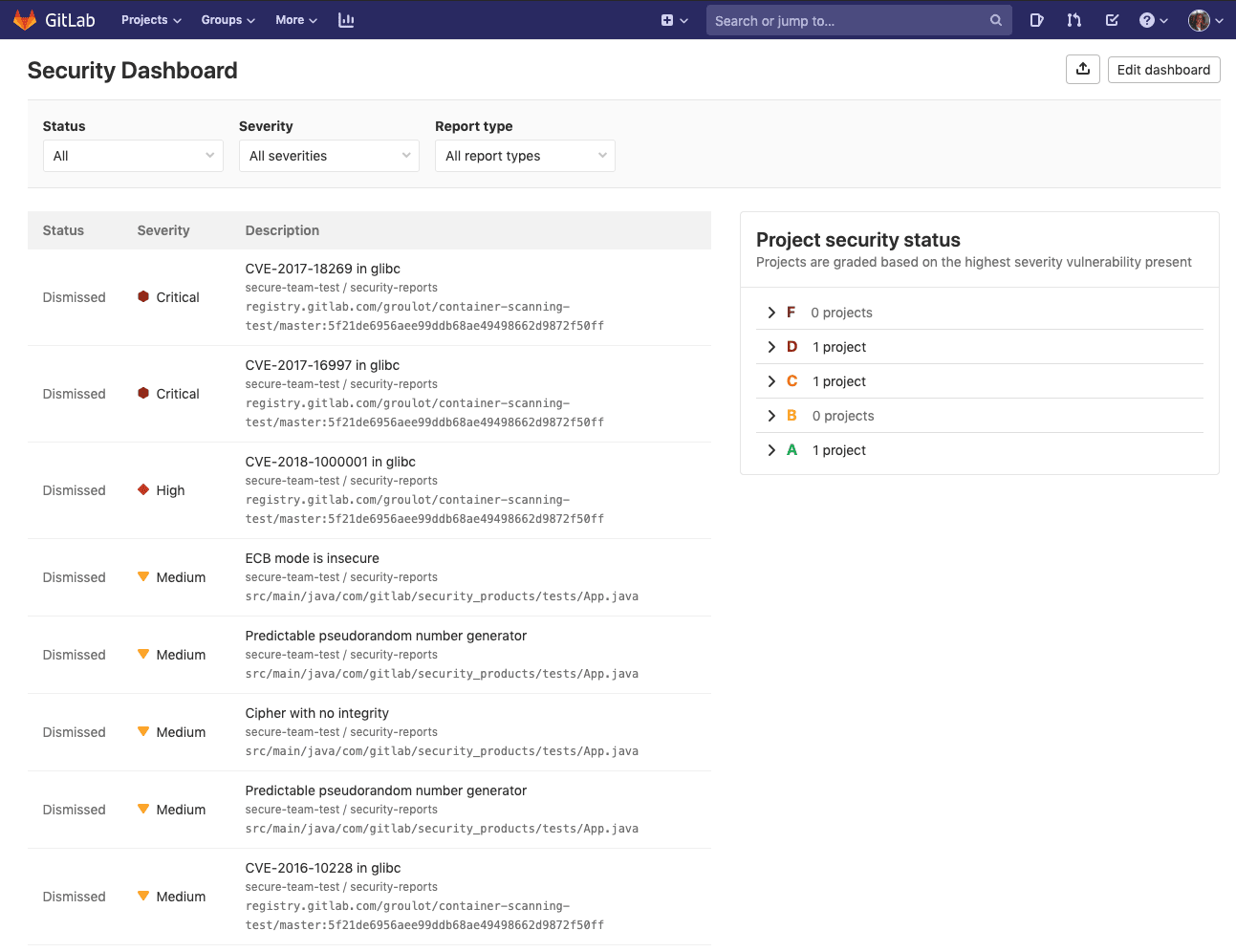

At the instance level, the Security Dashboard displays the vulnerabilities present in all of the projects that you have added to it. It includes all of the features of the group security dashboard.

You can access the Instance Security Dashboard from the menu bar at the top of the page. Under More, select Security.

Adding projects to the dashboard

To add projects to the dashboard:

Click the Edit dashboard button on the Instance Security Dashboard page.
Search for and add one or more projects using the Search your projects field.
Click the Add projects button.

Once added, the dashboard will display the vulnerabilities found in your chosen projects.

Export vulnerabilities

Introduced in GitLab Ultimate 13.0.

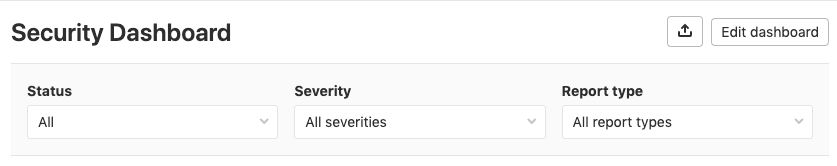

You can export all your vulnerabilities as CSV by clicking the {upload} Export button located at top right of the Instance Security Dashboard. After the report is built, the CSV report downloads to your local machine. The report contains all vulnerabilities for the projects defined in the Instance Security Dashboard, as filters don't apply to the export function.

NOTE: Note: It may take several minutes for the download to start if your project contains thousands of vulnerabilities. Do not close the page until the download finishes.

Keeping the dashboards up to date

The Security Dashboard displays information from the results of the most recent security scan on the default branch, which means that security scans are performed every time the branch is updated.

If the default branch is updated infrequently, scans are run infrequently and the information on the Security Dashboard can become outdated as new vulnerabilities are discovered.

To ensure the information on the Security Dashboard is regularly updated, configure a scheduled pipeline to run a daily security scan. This will update the information displayed on the Security Dashboard regardless of how often the default branch is updated.

That way, reports are created even if no code change happens.

Security scans using Auto DevOps

When using Auto DevOps, use special environment variables to configure daily security scans.
